Our Technologies :
LA-NCC Passive Green Building
What is NCC?

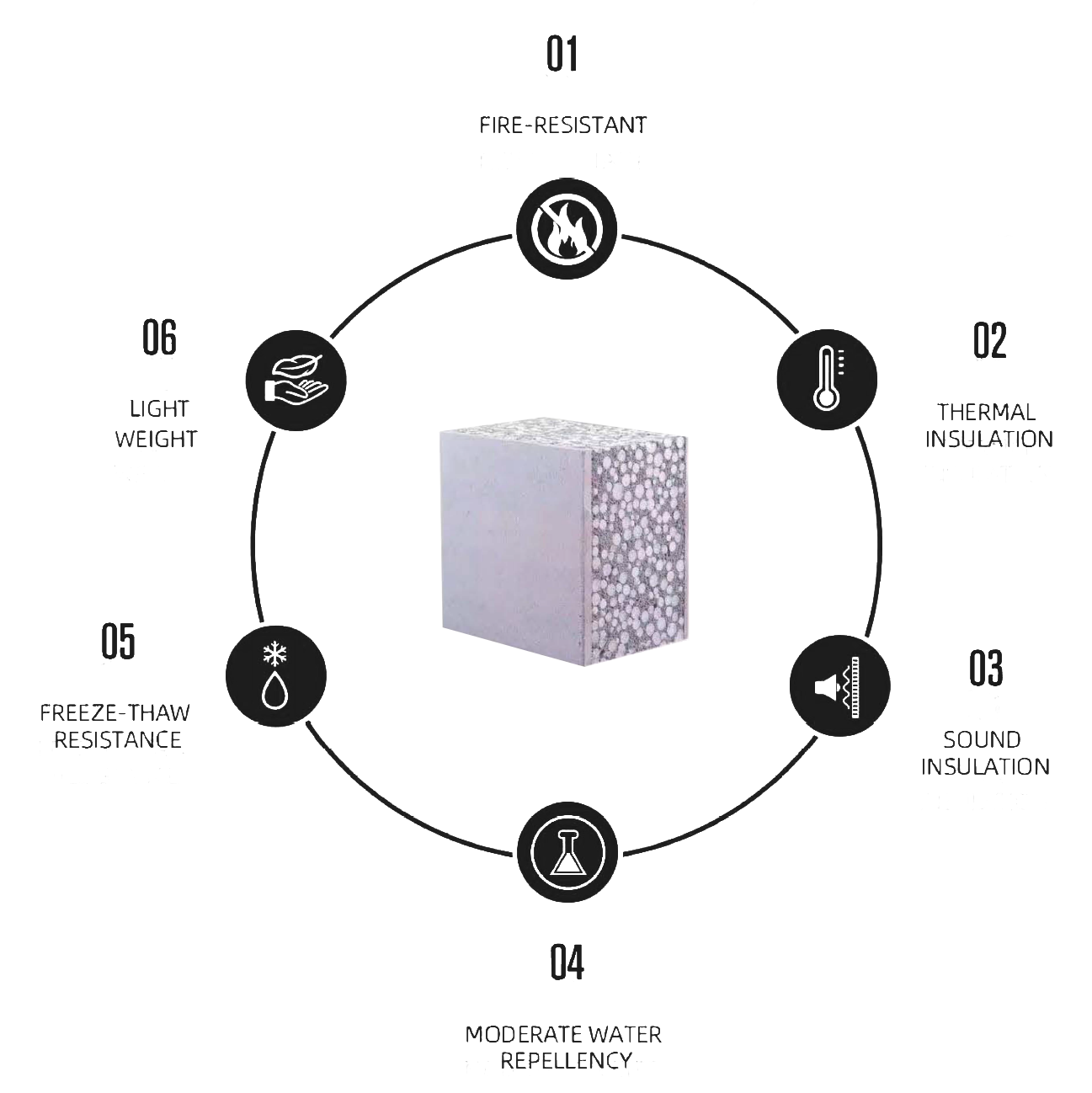

NCC (nano cellular concrete) is a type of high-performance lightweight concrete insulation material.
• Class A and 3 hours fire rating. Under 3000oC flame attack, no heat penetration can be found on 100 mm NCC wall core backside
• Excellent thermal insulation and sound insulation properties
• Good water resistance and freeze-thaw performance
• Breathable wall to avoid condensation
• In compliance with GB UFGS -035216, ASTM C332, JG/T536, JC/T 2458

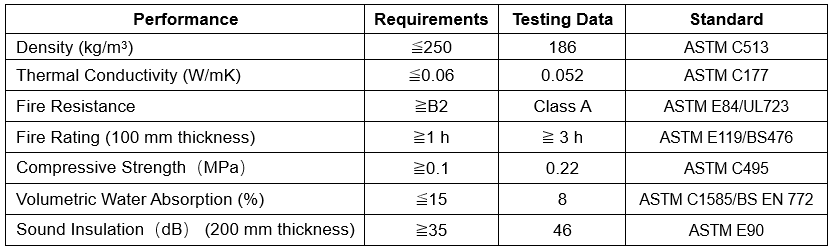

Technical Data Sheet
LA-NCC (Nano Cellular Concrete) THERMAL INSULATION MATERIAL

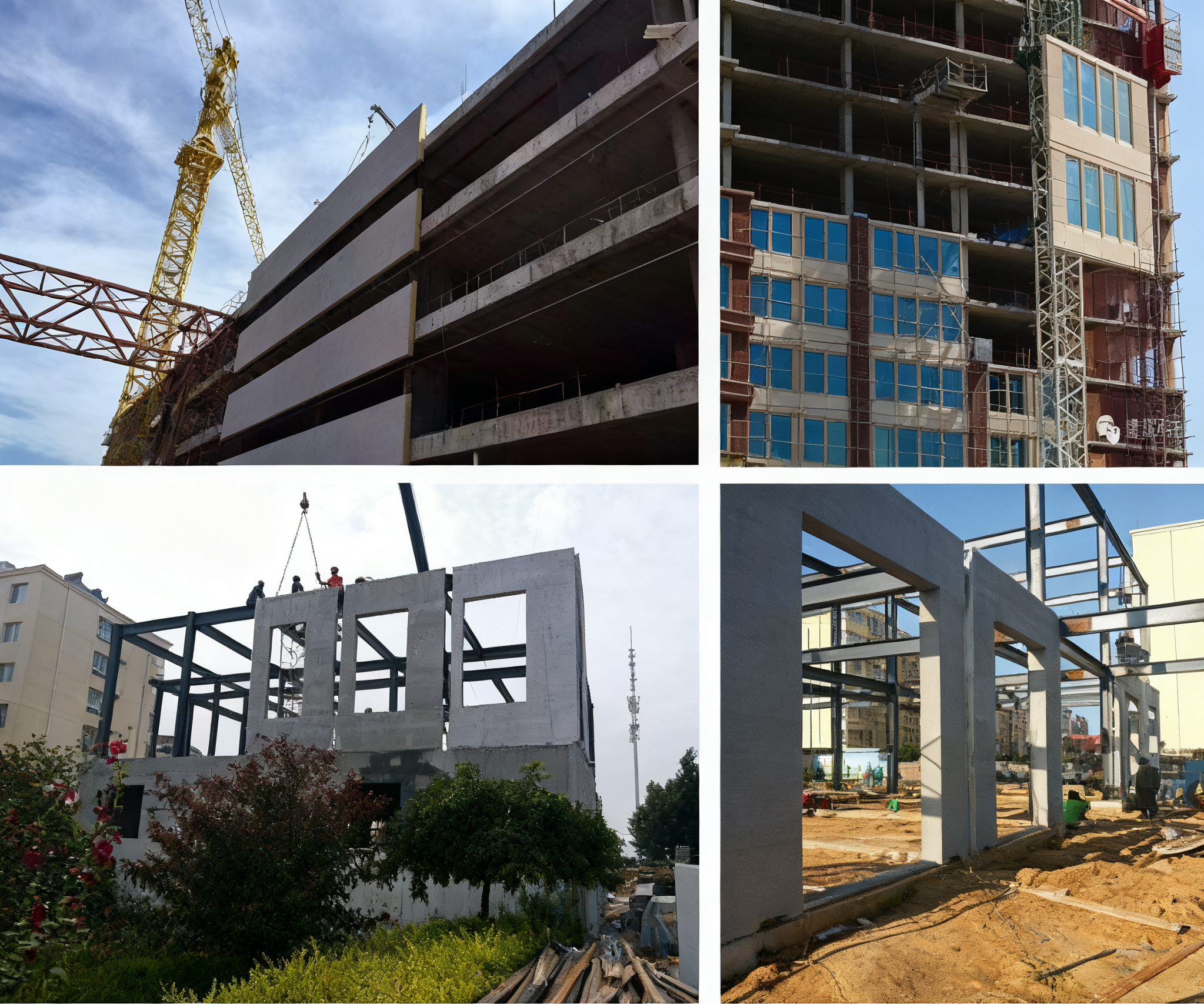

Prefabricated Modular Wall Panels & Self-insulating Blocks
Prefabricated Modular Wall Panels will be constructed using NCC (nano cellular concrete) pouring.
• Surface decoration , windows & doors, as well as electrical pipelines, can be prefabricated all-in-one directly in prefab plants
• Diversified architectural design , combined and variable like LEGO
• Mobile factory prefabrication , efficient on-site assembly, saving construction time and labor cost by 80 %

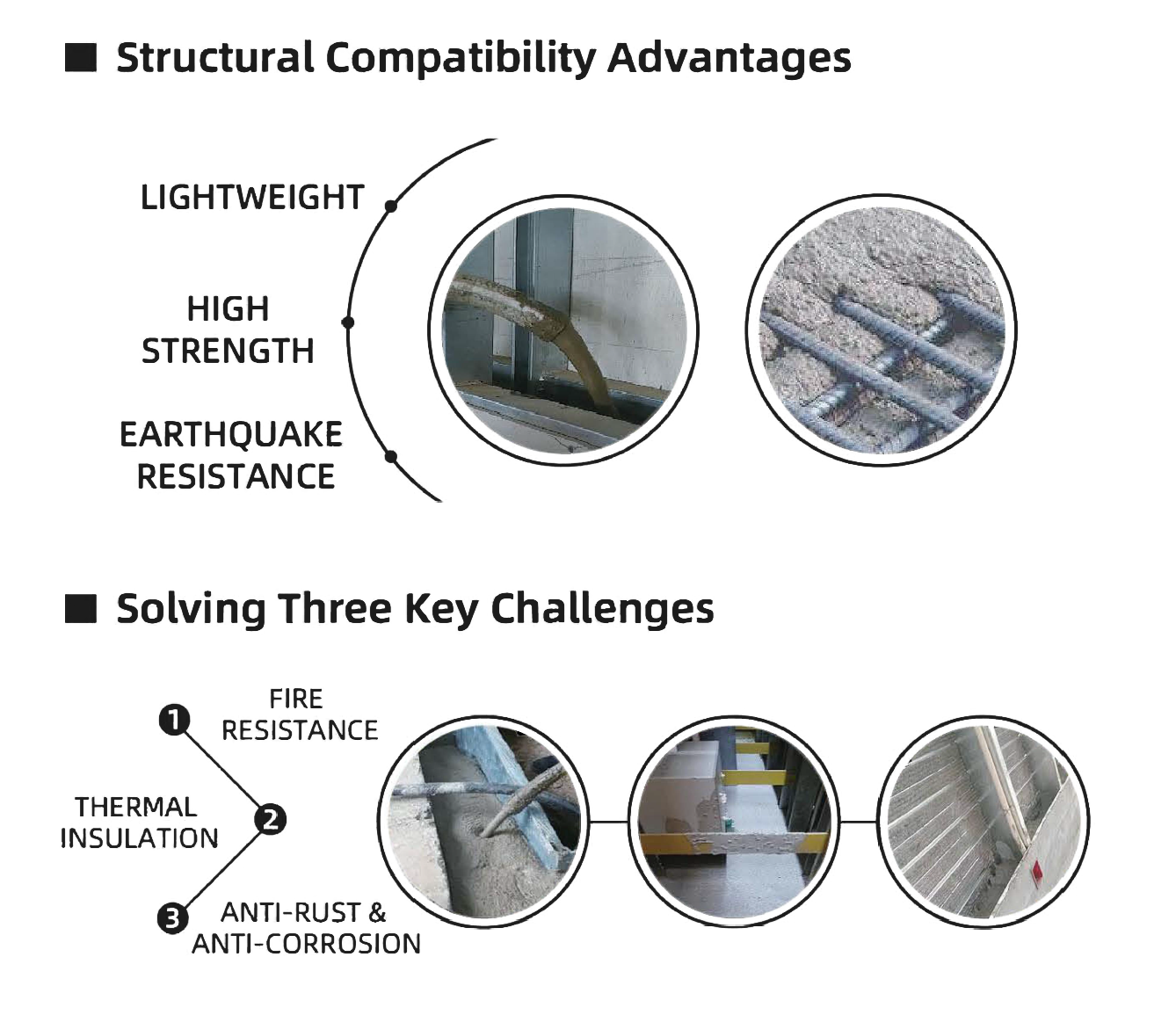

• The lightweight envelope structure is assembled with modular walls, which reduces the load and design dimensions of the foundation and frame structure, making the overall cost lower than traditional construction methods.

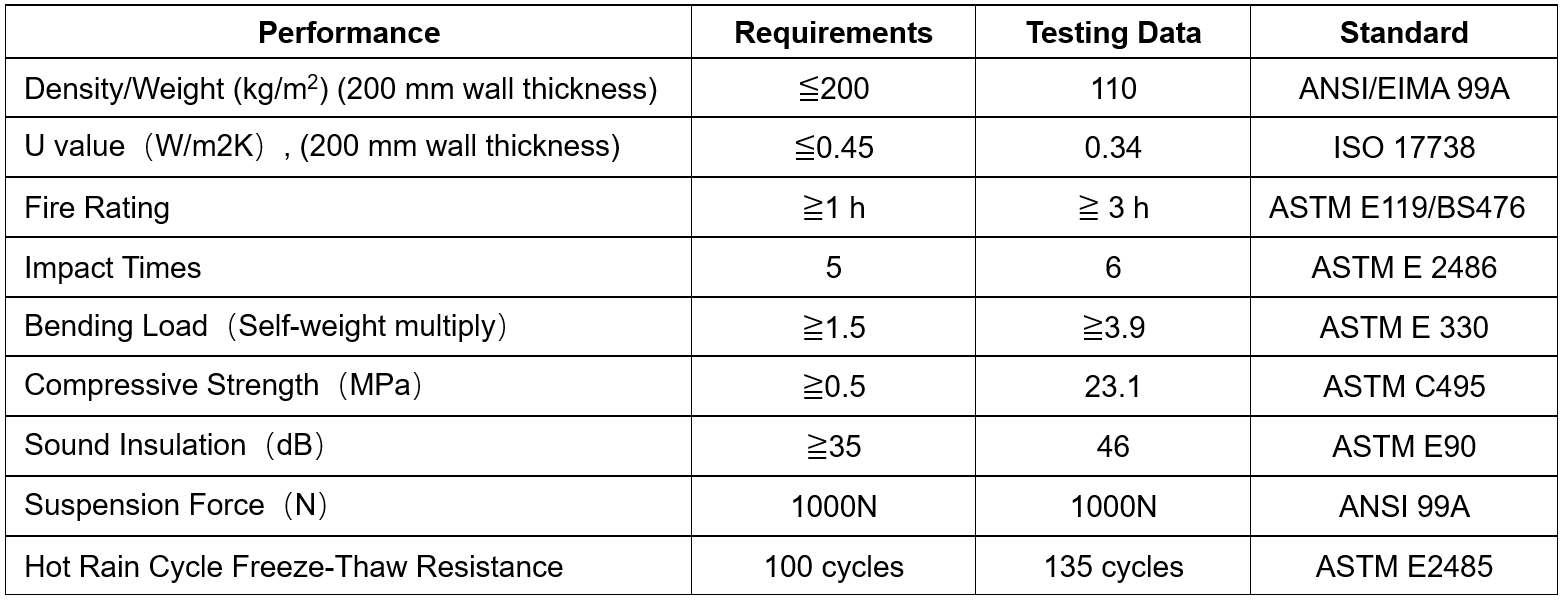

Technical Data Sheet
LA-NCC THERMAL INSULATED WALL SYSTEM

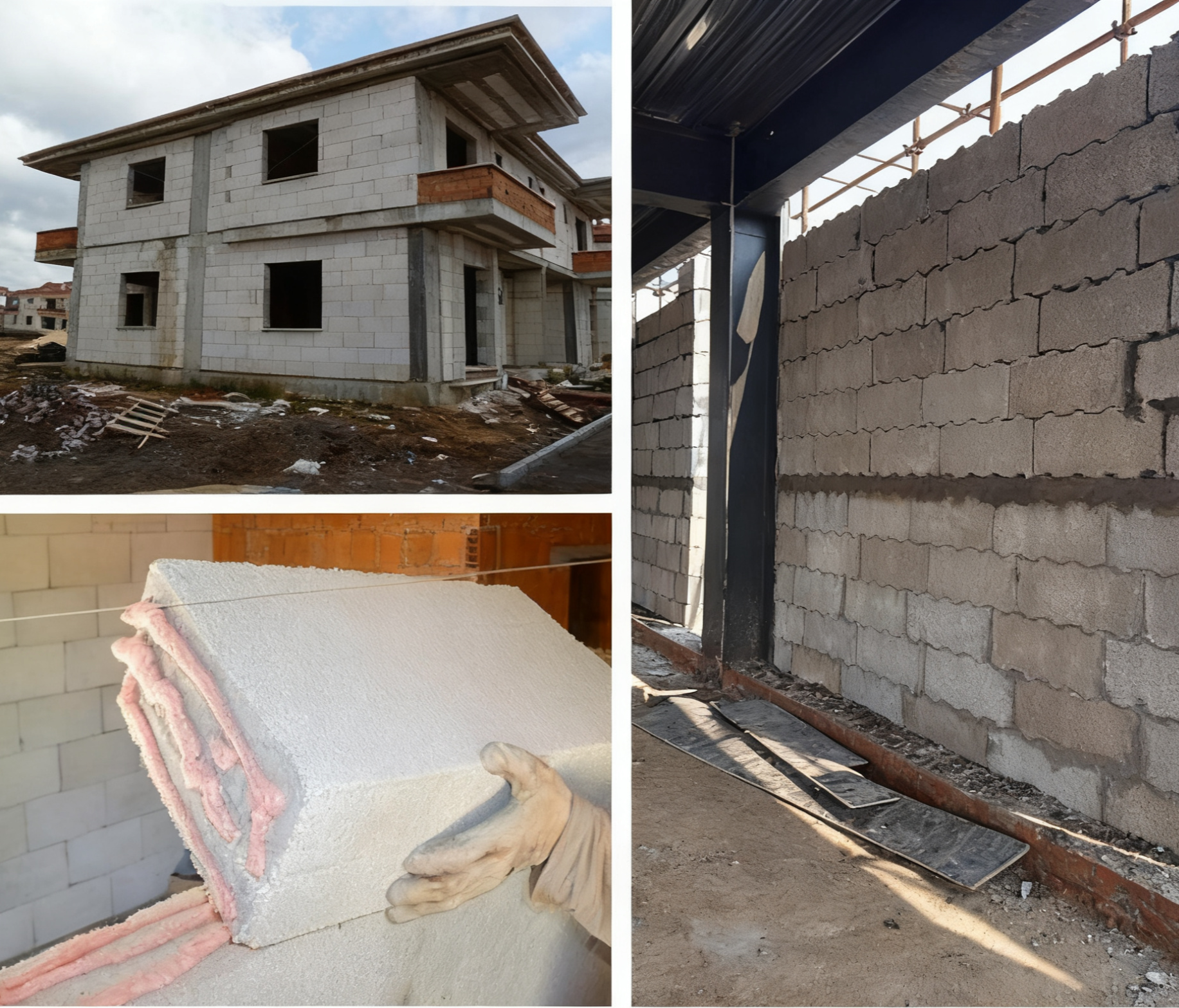

Self-insulating Blocks are lightweight and highly durable—low thermal conductivity, good insulation performance, and no need for external insulation. The comprehensive cost is superior to traditional aerated blocks and external insulation.

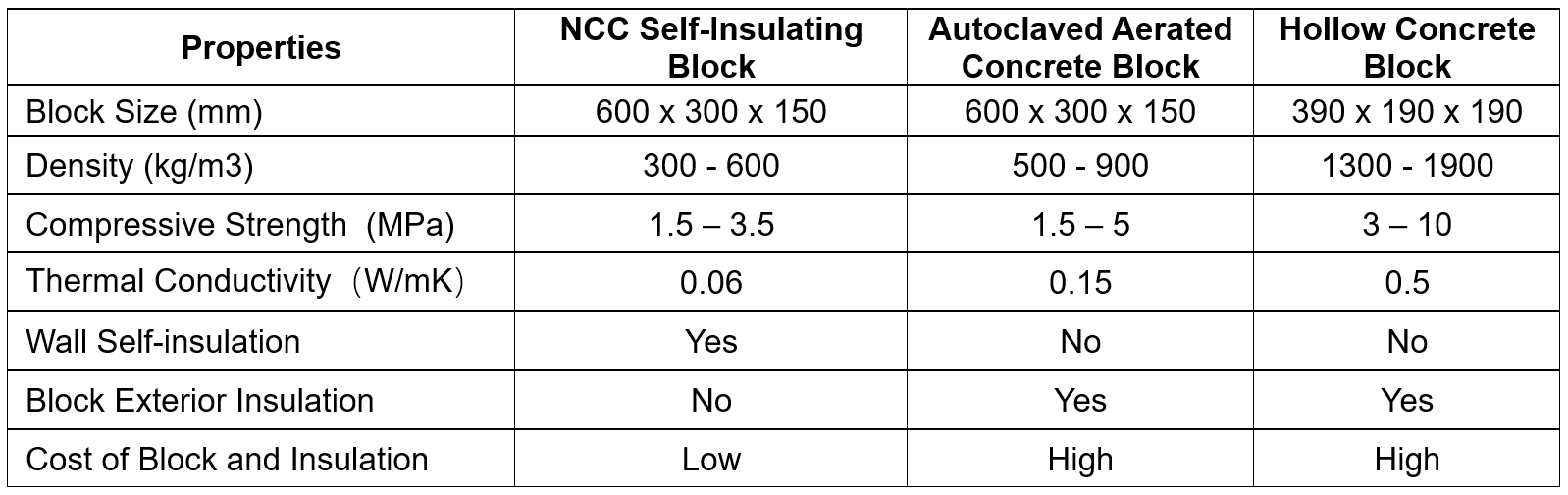

Comparison Sheet
With Autoclaved Aerated Concrete Block and Hollow Concrete Block
Windows & Doors

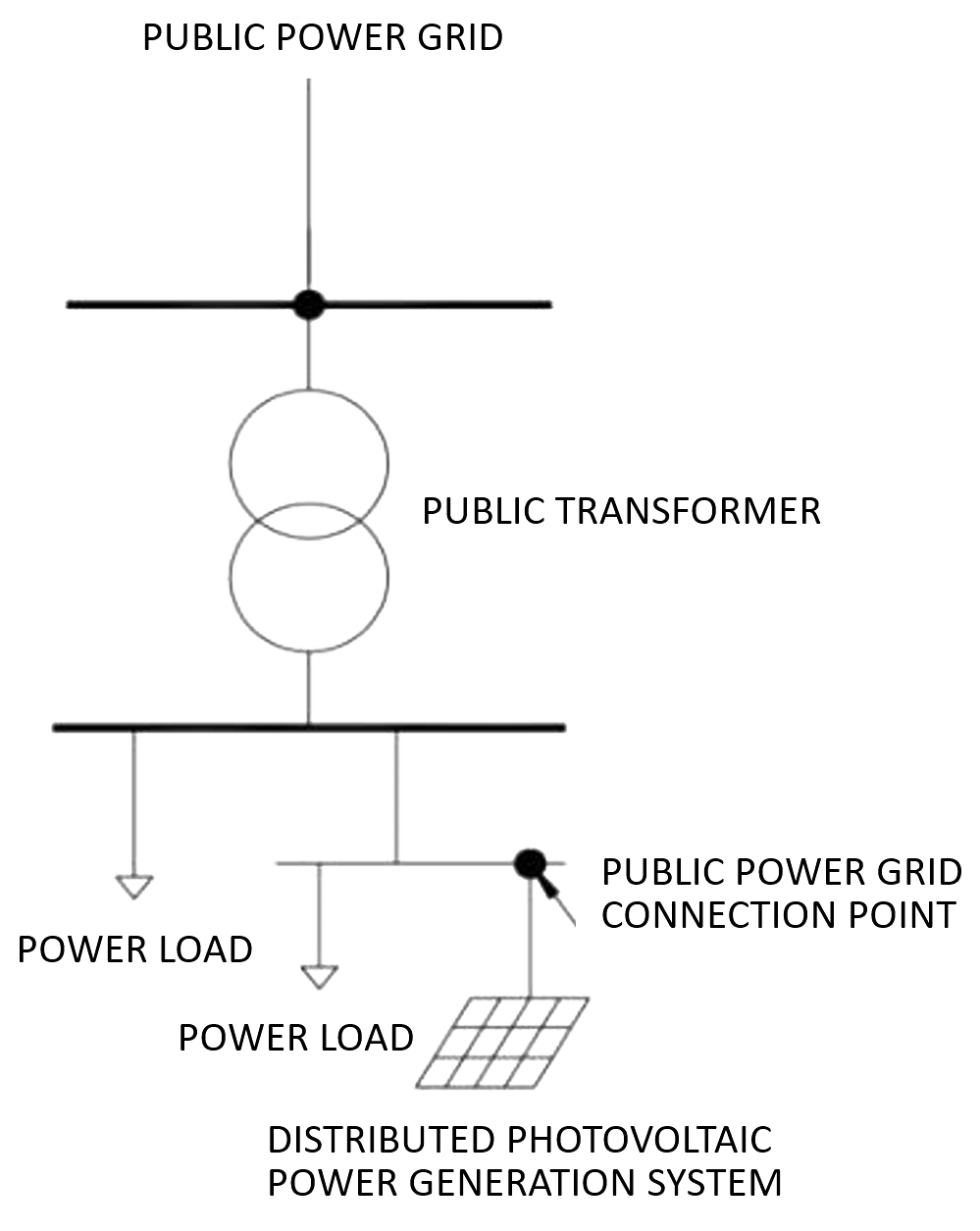

The integration of Advanced Solar Photovoltaic Glass Technology & window structure technology will be applied to doors and windows.

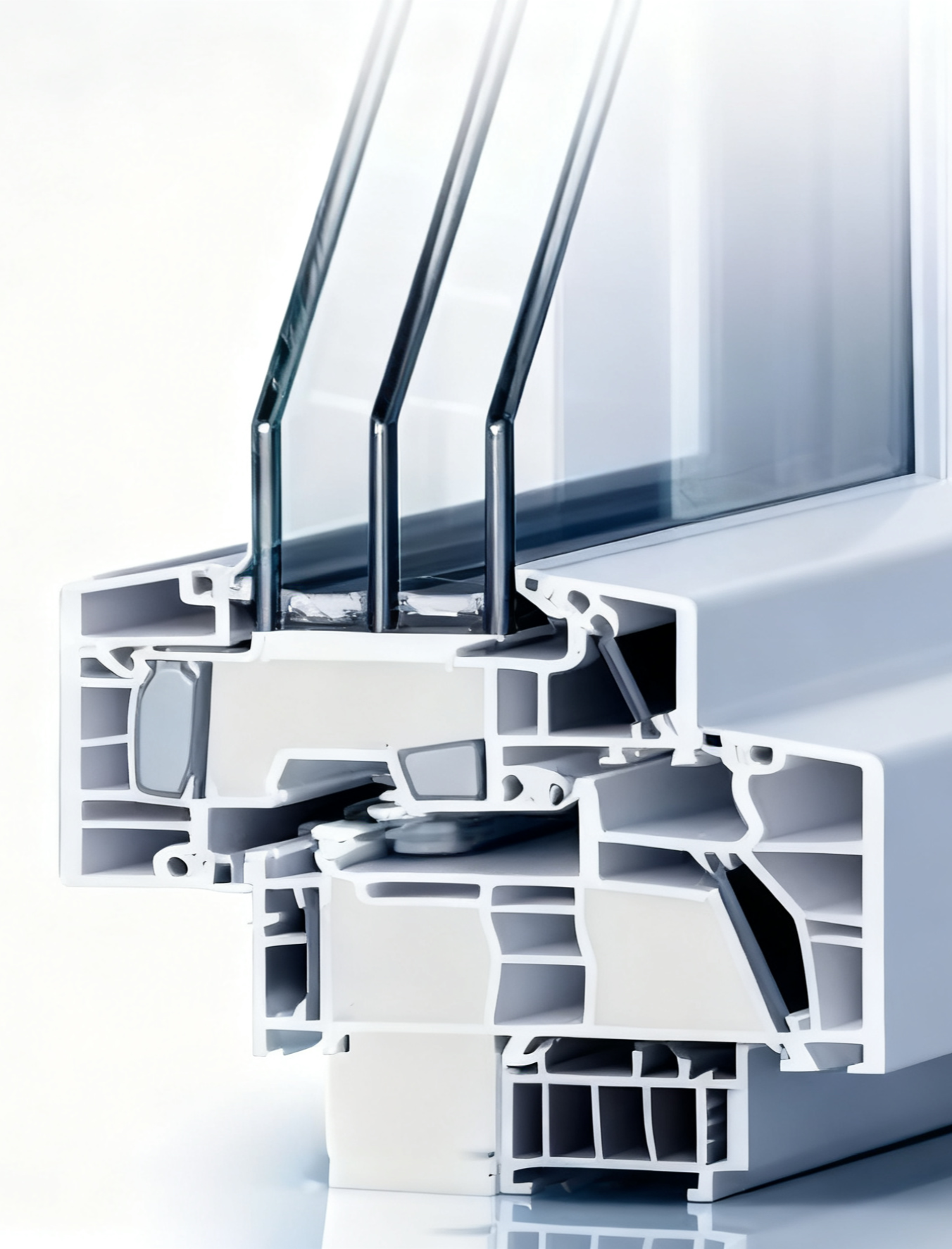

• "LOW-E Triple Pane" energy-saving windows and doors
• Photovoltaic power generation glass film chip can convert 16% of visible light radiation energy into electrical energy.
Engineering Cases

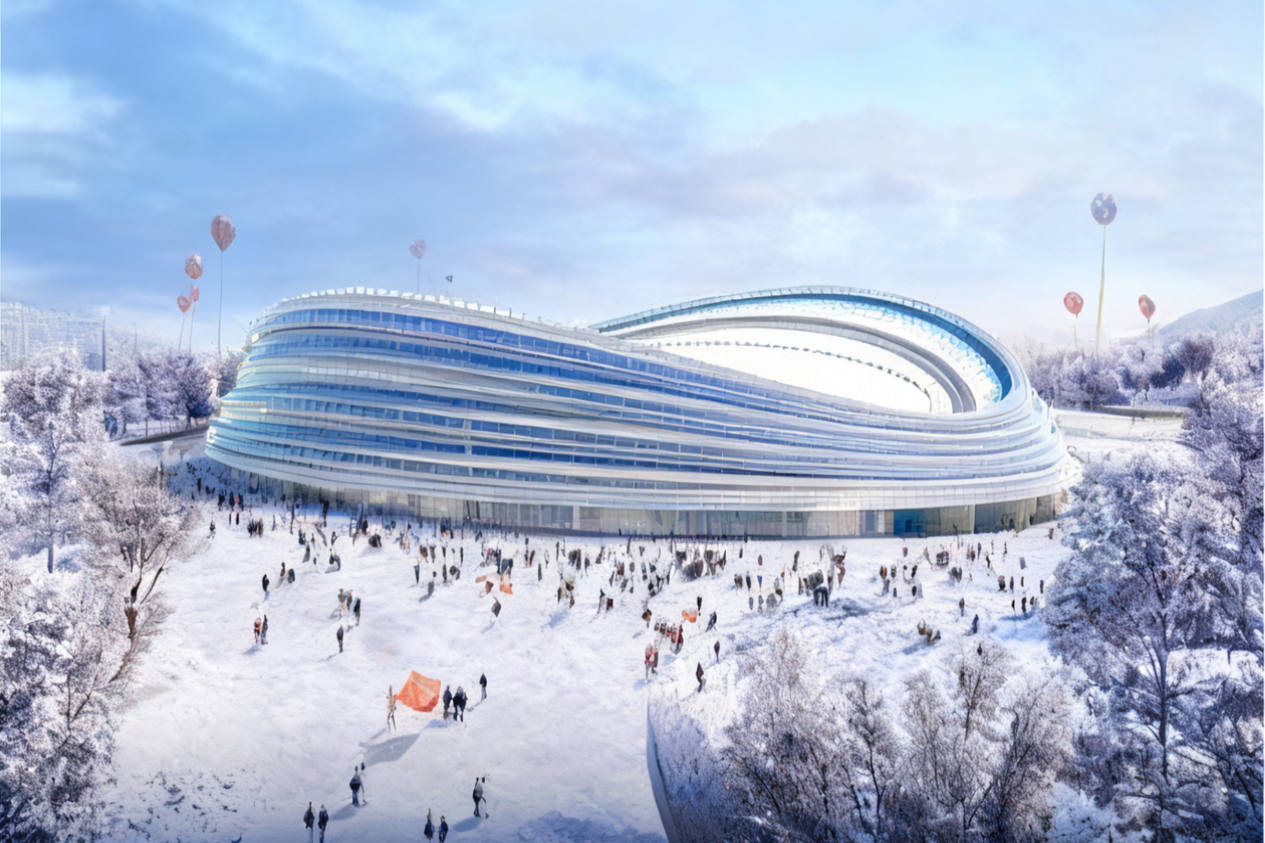

The National Speed Skating Center
The National Speed Skating Center of the 2022 Beijing Winter Olympics has a total construction area of 80000 square meters and an average annual power generation of 131.8 kWh/m ².

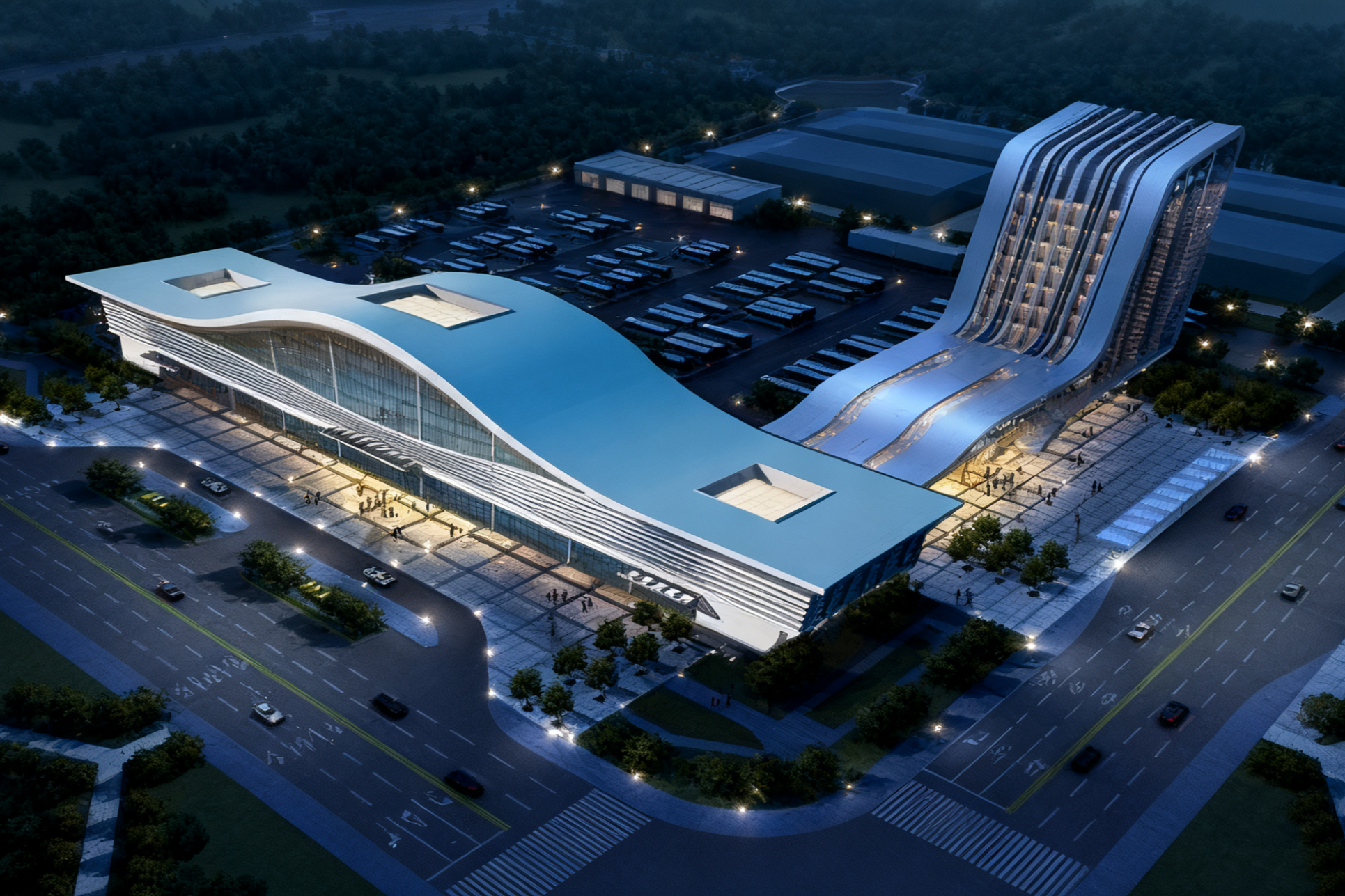

NCC Low Energy Building Engineering Design Optimization in Aletai City
This project is an urban public transportation hub project with a building area of 10000 square meters. After using the NCC insulation system for energy-saving optimization design, it reaches an energy-saving system of 85. While reducing the overall project cost, it is expected to save energy costs of 700000 to 1 million yuan annually, which will significantly reduce the operating costs of the owner.

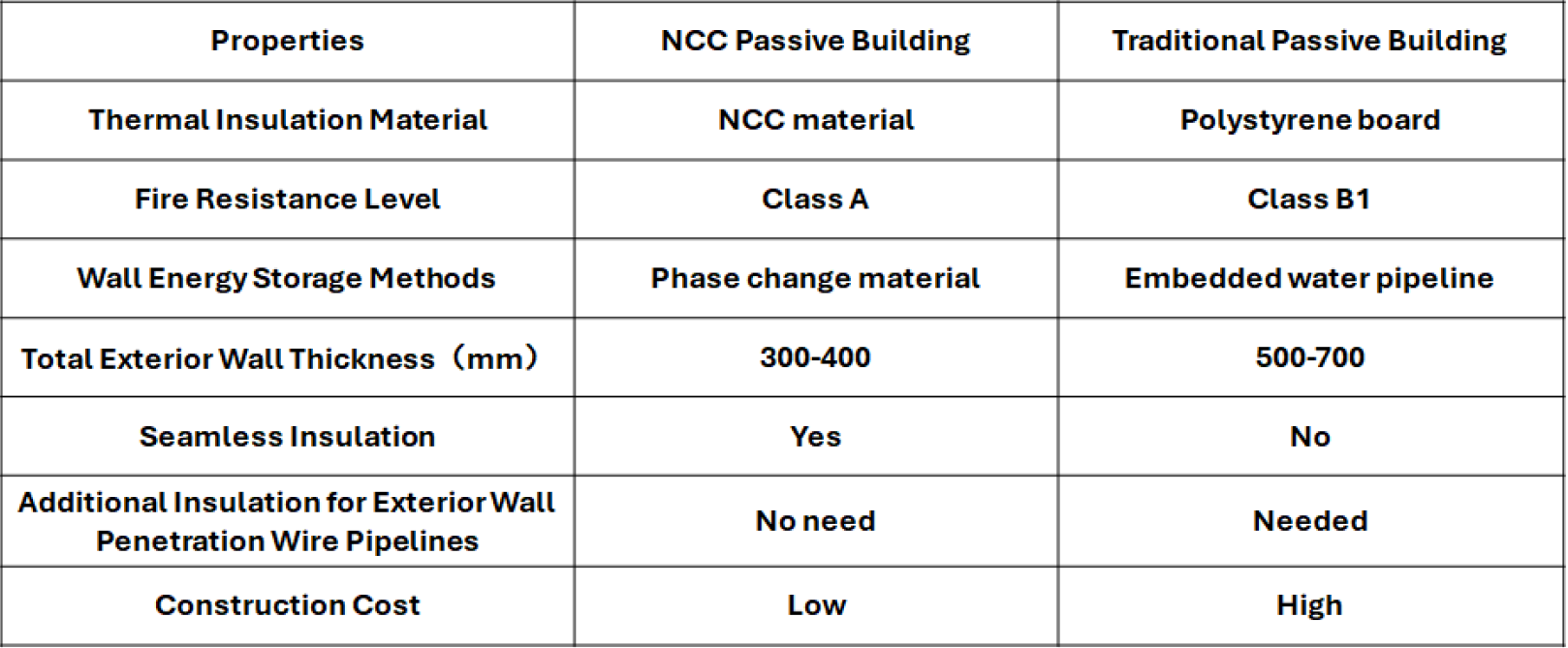

Comparison Tables
NCC Passive House and Conventional Passive House
Monitoring Data
